CLD-3 type static probe - cross plate cutting dual-purpose instrument

PRODETAIL_NAME：
CLD-3 type static probe - cross plate cutting dual-purpose instrument
PRODETAIL_NUMBER：
PRODETAIL_TIME：
Browse times：1993

The last one  Next Message

Detail

Characteristic

Parameter

The CLD-3 dual-purpose instrument has two functions: static penetration test and cross plate shearing: when performing static test, the 10cm static single bridge or double bridge probe is used to measure the penetration resistance Ps or cone of the foundation soil. End resistance Qc and side friction resistance Fs. For the cross-plate shear test, the undrained shear strength Cu of the saturated soft clay is measured using a cross-plate sensor (probe).
The instrument does not require power and machine power. It is shaken by human force and is suitable for clay, silt, fine sand and other soil layers. It can be tested in soft soil areas for more than 30 meters.
After years of application and development, the instrument has been perfected, with stable performance, convenient operation, light and flexible, and is well received by many survey users at home and abroad.

Structure type: light chain type, hand-cranked on both sides, with support leveling mechanism
Rated penetration force: 30KN (3 tons)
Maximum penetration: 33KN (3.3 tons)
Through the journey:1m
Penetration speed: 0.9 ~ 1.2 m / min (50-70 rpm)
Pick-up speed: slow speed and penetration speed, fast up to 4 m/min
Probe: 1m long, 30 pieces. Φ28×5-6 thick, high quality alloy steel seamless tube
Ground anchor: diameter 220 ~ 260 mm, single leaf anchor, 2 pieces
Cross plate cutting range:0～128 KPa
Static probe: strain gauge single bridge 10cm or double bridge 10cm

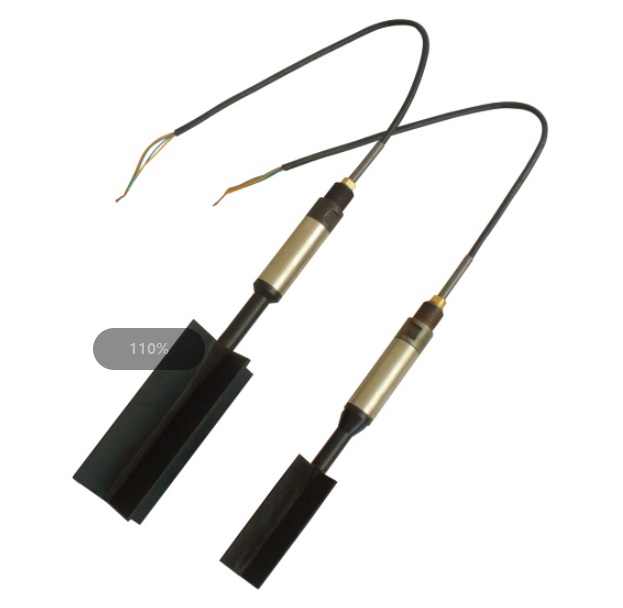

Cross-plate probe: strain gauge head 50 × 100 × 2 (mm) or 75 × 150 × 3 (mm)
Chain: drive chain 10A—1 68 sections 2
Drive chain 12A—1 148 section 2
Host weight: ≤60 kg
